PRODUCT
Comfort,durability,safety and control-effective

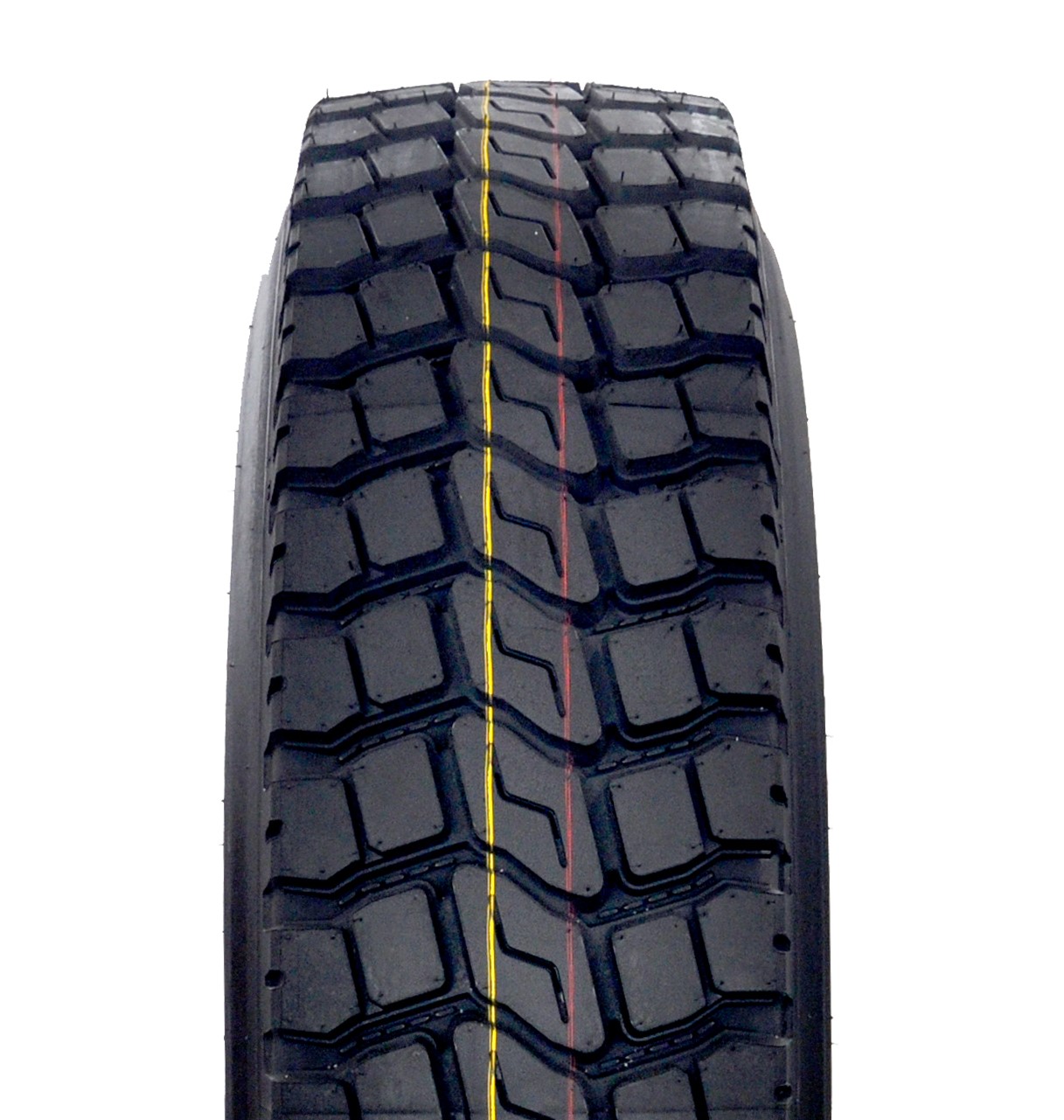

TC868

  Pattern Characteristic:

  • Big deep block provide strong traction and braking power.
  • Reinforced bead and body to strengthen the puncture resistance, tear resistance.
  • Open groove and bottom design give excellent self-cleaning performance.

Suitable conditions:

  • Suitable for driving wheel position on good road condition and non-paved roads.

SPECIFICATION
Size P.R. LI&SS Standard
 Rim
Outer
Diameter
(mm)
Section
Width
(mm)
Tread
Depth
(mm)
Max Load
(kg)
Air Pressure
(kpa)
Single Dual
7.00R16LT 14 118/114K 5.50F 778 202 10.5 1500 1320 770
7.50R16LT 14 122/118L 6.00G 802 210 13.5 1500 1320 770
8.25R16LT 16 128/124K 6.50H 860 230 14.5 1800 1600 770
8.25R20 16 139/137K 6.50 974 236 15 2430 2300 930
9.00R20 16 144/142K 7.00 1018 258 15.5 2800 2650 900
10.00R20 18 149/146K 7.50 1052 275 16 3250 3000 930
11.00R20 18 152/149K 8.00 1082 286 15.5 3550 3250 930
12.00R20 20 156/153K 8.50 1122 313 18 4000 3650 900
12.00R24 20 160/157K 8.50 1226 313 16 4500 4125 900
